Ubiquiti Networks AM-M-V5G-TI

Advanced RF Isolation Variable Beamwidth Antenna, 2x2 MIMO, 17 dBi, 5 GHz Advanced Carrier-Class PtMP Basestation Antenna
Introducing the airMAX Titanium Sector, which continues the evolution of Ubiquiti?s best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology

Reduced Co-Location Interference
Drawing on Ubiquiti?s depth of electrical and mechanical engineering expertise, Ubiquiti has developed the airMAX Titanium Sector to be highly resistant to noise interference in co?location deployments.

Adjustable Beamwidth Configuration
Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60 ?, 90 ?, or 120 ? sector.
Antenna gain changes according to the configured beamwidth.

Increased Performance
The airMAX Titanium Sector was specifically engineered for optimal performance when paired with a Rocket M Titanium.

- 20% increase in performance with PtMP networks
- Up to 90% performance improvement in a co?location environment
- Increased durability in harsh weather

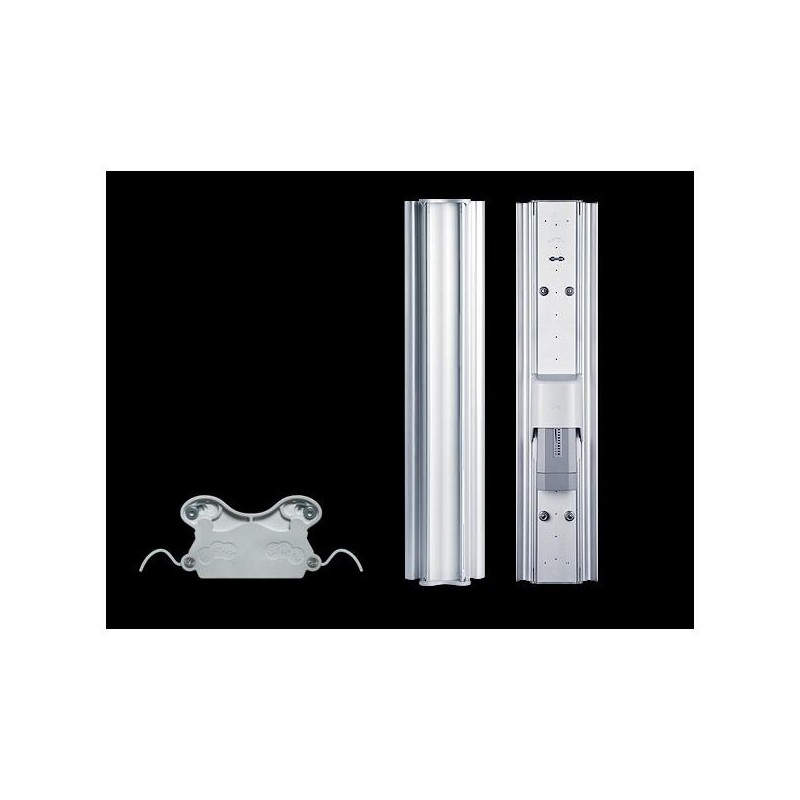

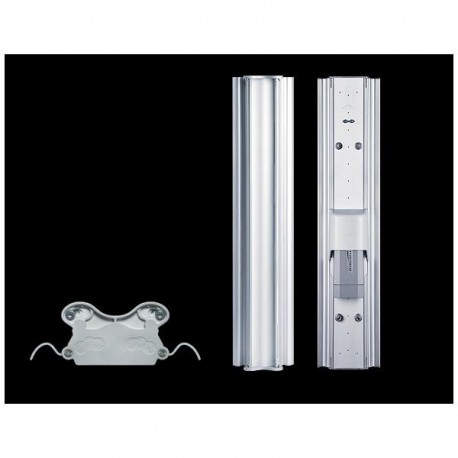

Easily Mount and Protect Your Rocket
The Titanium Sector has an integrated Rocket mount that allows you to mount the Rocket without the use of any tools. The custom?designed Protective Shroud helps to shield your Rocket from the elements.

Ubiquiti Networks AM-M-V5G-TI. Ganancia de la antena (max): 17 dBi, Frecuencia de banda: 5.15 - 5.85 GHz, Tipo de antena: Sector. Peso: 3,25 kg, Ancho: 38,5 cm, Profundidad: 14,9 cm

■ Peso y dimensiones
Peso → 3,3 kg
Ancho → 38,5 cm
Profundidad → 14,9 cm
Altura → 7,6 cm


■ Contenido del embalaje
Cantidad → 1


■ Características
Ganancia de la antena (max) → 17 dBi
Frecuencia de banda → 5.15 - 5.85 GHz
Tipo de antena → Sector
Ancho de haz horizontal (5 GHz) → 4
Ancho de haz vertical (5 GHz) → 3
Utilizar con → Exterior
Montaje → Pared
Ratio de voltaje de onda estacionaria (VSWR) → 1.7:1
Tipo de conector de antena → RP-SMA
Polarización → Dual Linear
Ancho de viga horizontal → 120
Ancho de viga vertical → 60
Color del producto → Color blanco
Certificación → EN 302 326 DN2 CE, FCC, IC

Partnumber/Ean: 4016138889895 609132713538
