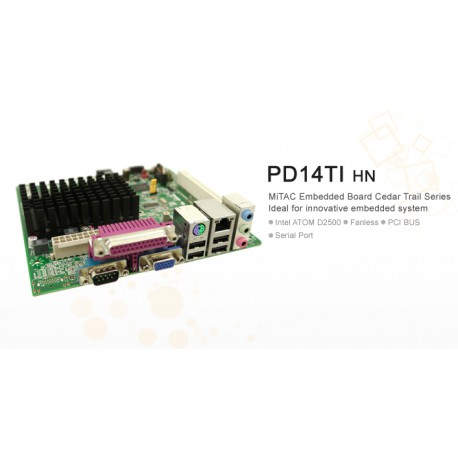

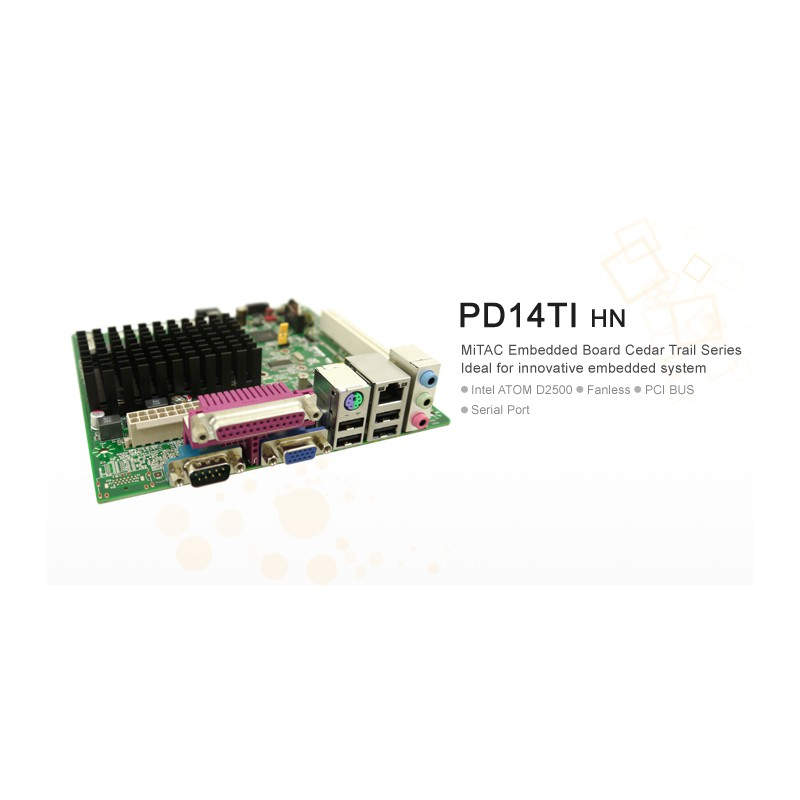

Mitac PD14TI HN Ver maior

Mitac PD14TI HN

Novo

0,00 €

  • Mais info
  • Perguntas (0)
  • Comentários

Item Spec

Form Factor Mini-ITX (170 millimeters [6.7 inches] x 170 millimeters [6.7 inches])

Processor Passively-cooled, soldered-down dual-core Intel® Atom processor with integrated graphics and memory controller.

Main Memory

Two 204-pin Double Data Rate 3 (DDR3) Small Outline Dual Inline Memory Module (SO-DIMM) sockets with gold-plated contacts

Support for DDR3 1066/1333/1600 MHz SO-DIMMs (DDR3 1333 MHz and DDR3 1600 MHz SO-DIMMs operate at1066 MHz only)

Support for up to 4 GB of system memory

Chipset Intel® NM10 Express Chipset

Integrated Graphics Intel® Graphics Media Accelerator 3600 (Intel® GMA 3600) integrated graphics subsystem with support for VGA displays

External Graphics External graphics support provided through the PCI bus connector

Audio RealTek* ALC662 audio codec for 5.1 (6-channel) High Definition Audio (HD Audio) and AC 97 Audio. Included are:

Back panel audio connectors

Onboard S/PDIF digital audio header

Front panel microphone/headphone header with support for HD Audio or AC 97 Audio

Legacy I/O Legacy I/O Controller (Nuvoton* W83677HG-I) that provides:

Two serial ports (one via a back panel connector and one via an onboard header

One back panel parallel port

One PS/2 keyboard/mouse port Hardware management support

Expansion Capabilities One PCI* bus add-in card connector

Peripheral Interfaces Eight USB 2.0 ports:

Four back panel ports

Four front panel ports (via two internal headers)

Two Serial ATA (SATA) 3.0 Gb/s connectors

Hardware Monitor Subsystem Hardware monitoring through the Nuvoton* W83627DH-P legacy I/O controller, including:

Remote thermal sensor One 3-pin system fan header with speed control

BIOS Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOSS

Instantly Available PC Technology

Support for Advanced Configuration and Power Interface (ACPI)

Wake on USB, PCI, PCI Express, LAN, serial, PS/2, and front panel

Power Requirement ATX12V or SFX12V

Environment

Operating Temperature: 0 °C to +60 °C

Storage Temperature: -20°C to +70°C

Safety

CE

FCC

UL
